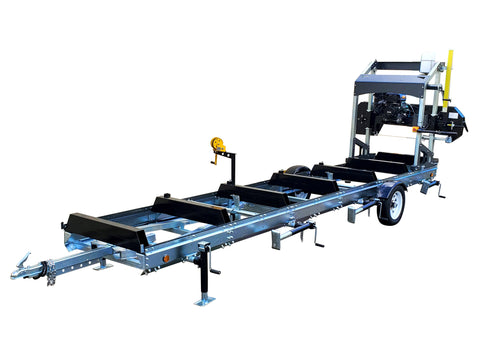

31" Capacity Portable Sawmill Upgraded Gas Kohler 14HP Engine Electric Start Band Saw WITH TRAILER PACKAGE

  • $ 8,499.00


31" Capacity Portable Sawmill Upgraded Gas Kohler 14HP Engine Electric Start Band Saw WITH TRAILER PACKAGE

 *** PLEASE CONTACT US FOR A SHIPPING QUOTE IF NEEDED.  THIS PRICE IS BASED ON PICKUP FROM SAN MARCOS, CA (SAN DIEGO AREA)  ** THIS PRODUCT IS IN STOCK AVAILABLE FOR SAME DAY PICKUP.

  • Engine: Kohler Command Pro CH440 - 14HP Engine with Electric Start
  • Displacement: 429CC
  • Start type: Recoil + Electric Start
  • Oil capacity: 1.16L
  • Cast iron cylinder liners provide lasting durability
  • Oil Sentry automatic low oil engine shutdown system
  • Cutting Capacity: 31" x 7" x 110"
  • Blade Size: 144” x 1-1/4” x 0.035” (Inches)
  • Maximum Board Thickness: 7"
  • Standard Track Size: 157" x 40.5" ** We have extended track sections if needed. These come stock with 4 frame pieces
  • Packing Size: 85" x 23" x 33"
  • Safe Cutting Speed: 13-15s/m
  • Blade Speed: 17m/min
  • Distance Between Teeth: 22mm (.86")
  • Blade Wheel Diameter: 18.8"
  • Overall Dimensions: 160" x 70" x 71"
  • *** We have only Black Trim Color at this time. (Not Orange)
  • Weight: 780lbs

Trailer Specs:
RST6
Trailer Axle: 50x50mm
Trailer Size: (LxWxH): 6000(+1000mm drawbar)x900x700mm (236" + 39" drawbar x 36" x 28" Inches)
Trailer Wheels (With Fenders): 165/70R13
Trailer Loading Capacity: 1500kg (3300 lbs)
LED light kit included
Trailer Leveling Jacks: 8pcs
Trailer Ball Hitch Coupler: 2" (50mm)
Finish: Galvanized
Log Loading Ramp: Max. 1350kg (2970 lbs)
Log Loading Winch: 3000 lbs
Gross Weight: 415kg (913lb)
Packing Size: 2000×550×680mm (79" x 22" x 27")

  • Warranty: 1 Year Parts
  • SHIPPING: Contact us for Shipping Quote

** ASSEMBLY IS REQUIRED.  THIS PRODUCT IS FAR TOO LARGE TO SHIP FULLY ASSEMBLED.

Engine Manual: http://resources.kohler.com/power/kohler/enginesUS/pdf/17_590_28_EN.pdf
Engine Service Manual: http://resources.kohler.com/power/kohler/enginesUS/pdf/17_690_01_EN.pdf

Manual Download: https://www.westernpacificwholesale.com/Manuals/SawmillManual.pdf
