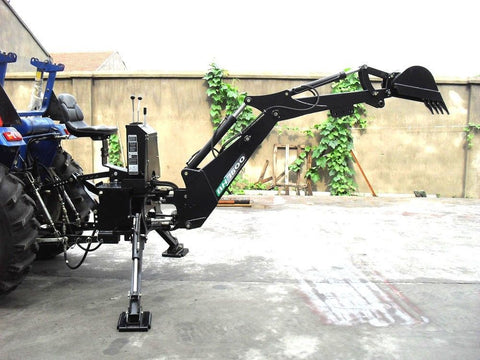

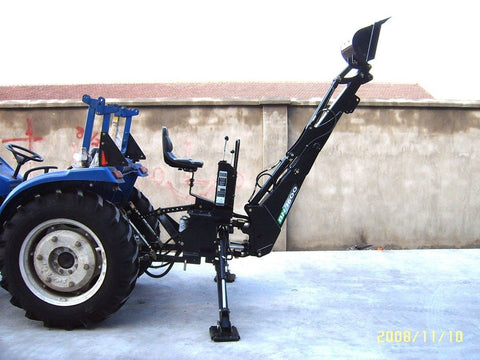

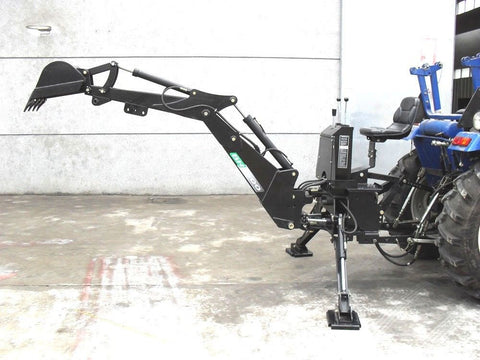

BH6600 Backhoe by Samson Machinery

BH6600 PTO Backhoe Farm Tractor Attachment Cat 1 Hitch w/ PTO Pump, Tank, Thumb + Bucket

  • $ 5,495.00
  • Save $ 1,000.00



BH6600 PTO Backhoe Farm Tractor Attachment Cat 1 Hitch w/ PTO Pump, Tank, Thumb + 15" Bucket

*** COMPLETE SELF CONTAINED SYSTEM.  INCLUDES ITS OWN HYDRAULIC OIL TANK + PTO PUMP.  NO NEED TO RUN OFF YOUR TRACTORS HYDRAULICS.

** IN STOCK.  ON SALE AT $5495 FOR THE FULL PACKAGE.  WE WILL INCLUDE THE THUMB ATTACHMENT FREE OF CHARGE.

Features / Specifications

  • NEW IN BOX.  Model: BH6600 Heavy Duty Backhoe Excavator Attachment.
  • Maximum Digging Depth - 7' Feet
  • Digging Depth (2 Foot Flat Bottom) 6' 6"
  • Maximum Digging Force - 5,280 lbs
  • Swing Arc - 180
  • Category 1 3-Point Linkage
  • Loading Height (Bucket at 60) - 5'
  • Reach from Center Line of Swing Pivot - 8' 6"
  • Transport Height (Maximum) - 4' 11"
  • Recommended for Tractors 18-35HP
  • Bucket Rotation - 180 Degrees
  • Loading Reach (Bucket at 60) - 3' 2"
  • Transport Overhang - 3' 5"
  • Undercut - 2' 4"
  • 15" Bucket Included with Thumb (other bucket sizes available)
  • Stabilizer Spread (Down Position) - 6' 6"
  • Stabilizer Spread (Up Position) - 3' 11"
  • Bucket Cylinder Digging Force - 2450 lbs
  • Cylinder Digging Force - 1250 lbs
  • Hydraulic Volume Requirements - 4 to 5 GPM
  • Hydraulic Pressure Requirements - 2250 psi
  • Shipping Weight: (925) lbs
  • Condition: New In Factory Sealed Box
  • Color - Black
  • 1 Year Warranty Included
  • IN STOCK AND SHIPS FAST!
